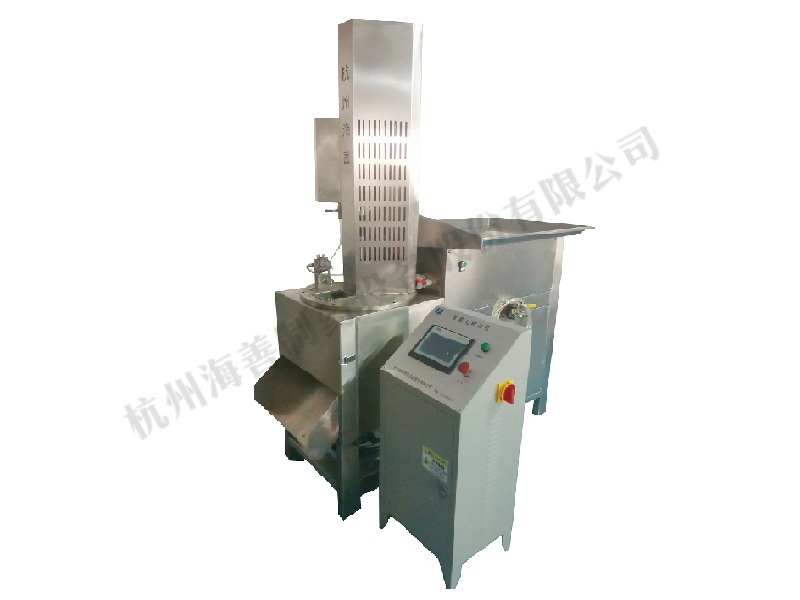

QXJP型多功能精切機主要用途：
本產品于切制各種軟、硬、韌、根莖桿類、果粒類、質地松脆藥物，如：天麻、木瓜、大黃、黃連、川芎、半夏、生地、熟地等；切制成飲片，符合GMP認證要求。
QXJP型多功能精切機主要特點：
氣壓送料，根據不同的藥物可調節不同的壓力，該機設有聯合器，剎車系統、噴霧槍、電腦排版；刀盤360度逆時針轉動，原料在料斗中通過氣動壓料完成一個切片過程。該機設計科學、結構合理、調節削切飲片厚薄十分方便；整機采用鋼結構接觸藥材、堅固耐用、噪音低、清潔維修方便。
QXJP multi - function fine cutting machine product introduction:
This product is made of various soft, hard, tough, rhizomatous, fruit and brittle drugs, such as Gastrodia elata, papaya, rhubarb, Rhizoma Coptidis, Ligusticum chuanxiong, Pinellia ternata, cooked land, etc. cut into pieces, in line with the GMP certification requirements.
The main features of QXJP multi function finishing machine are as follows:
Air pressure feed, according to different drugs can adjust the different pressure, the machine is equipped with joint, brake system, spray gun, computer typesetting; knife disc 360 degrees counter clockwise rotation, raw material in the hopper through pneumatic material to complete a slicing process.
It is very convenient to design scientific, reasonable structure and adjust the thickness of cutting slices. The machine uses steel structure to contact medicinal materials. It is durable, low noise and convenient for cleaning and maintenance.
QXJP型多功能精切機技術參考：
| 型號 | 生產能力（kg/h） | 切片厚度 | 功率 | 重量 | 外型尺寸(M) | 主要材料 |
| QXJP-440 | 100-800 | 0.3-8 | 4 | 420 | 1.78×0.78×1.95 | 不銹鋼 |
| ZQXJP-440 | 100-600 | 0.3-8 | 4.75 | 420 | 1.78×0.78×1.95 |
