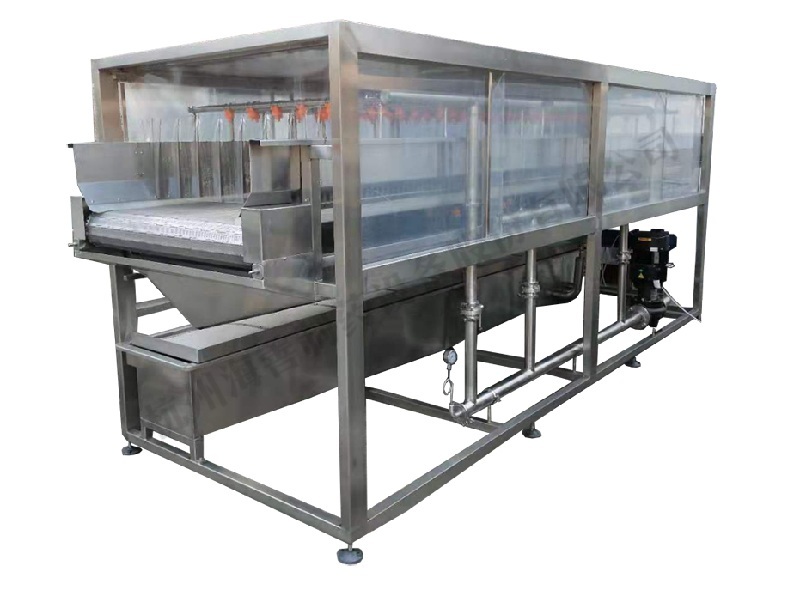

GX型鼓泡式清洗機工作原理與特點：
本機由機架、不銹鋼輸送網帶、鼓泡系統、循環水高壓噴淋系統、清水噴淋系統、電器控制系統等組成。利用旋渦氣泵將清水鼓泡，使物料可以有效的充分摩擦，達到清選效果。尾端采用清水噴淋。清洗過藥材的水流入設備下方水箱內，由循環水泵進行循環清洗。
Working principle and characteristics of GX bubble type cleaning machine:
This machine is composed of frame, stainless steel conveyor belt, bubbling system, circulating water high pressure sprinkling system, clean water sprinkling system, electrical control system and so on. Using the vortex air pump to blister the water, the material can be fully rubbed effectively to achieve the cleaning effect. Water spray is used at the end of the end. The water is washed into the tank below the equipment, and the circulating pump is circulated to clean it.
鼓泡式清洗機
高壓噴淋清洗機
GX型鼓泡式清洗機技術參考 Technical parameter:
| 型號 | 參考產量（kg/h） | 功率/電壓（kw/v) | 網帶速度（m/min) | 外形尺寸 | 主要材料 |
| GX-800 | 300-800 | 6/380 | 0-6 | 5.7×1.75×1.2 | 不銹鋼 |
GX-1000 | 500-1100 | 8/380 | 0-6 | 7.8×1.9×1.4 | 不銹鋼 |
GYPXJ-1100 | 200-700 | 6.25/380 | 0.7-4 | 4.0×1.5×2.0 | 不銹鋼 |
