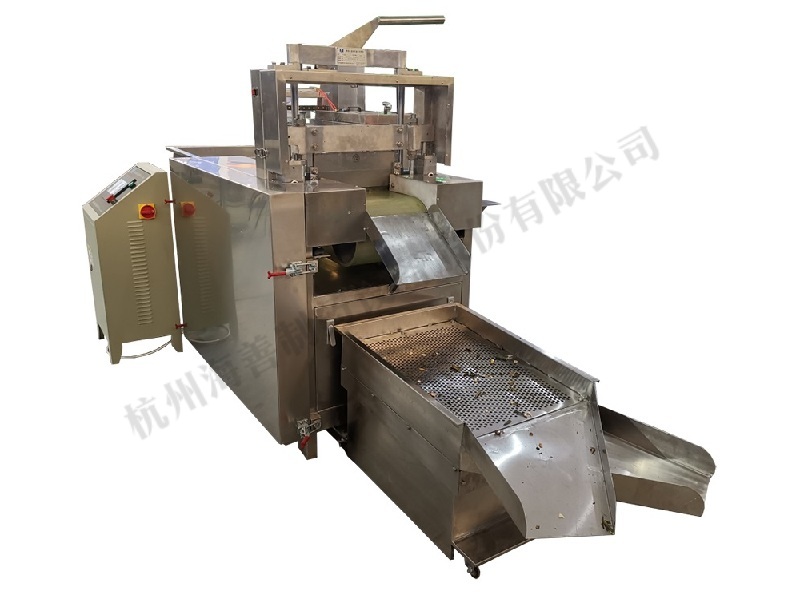

ZQRZG型智能化直線往復式切藥機主要用途：
本產品用于所有葉、皮、根、藤、草和果實、種子類藥材或農副產品的切割加工?？汕兄?.5-30mm范圍內的片、段、條等一般飲片和0.5-30mm范圍內多角形顆粒飲片。
ZQRZG型智能化直線往復式切藥機主要特點：
采用數字化控制程序操作，精確率高。穩定性好。連續作業。自動適用進料量，適合切制顆粒和精致飲片。切制飲片損耗率≤3%，飲片切口平整，片形好，整機易清洗，易操作，易維護。不污染物料。符合GMP要求。
ZQRZG型智能化直線往復式切藥機工作原理：
控制模塊根據微機系統先編制的程序以通訊方式對變頻器及控制器進行監測和控制。接受人機界面及切刀位置傳感信號。通過人機界面可以進行設置控制模塊的參數。通過控制模塊來控制切刀機構的步進速度及切片厚度。
ZQRZG intelligent linear reciprocating cutting machine products:
This product is used for cutting all leaves, skins, roots, rattan, grass and fruits, seeds, herbs or agricultural and sideline products. It can cut slices, sections, strips and other common pieces in the range of 0.5-30mm and polygonal granules in 0.5-30mm.
The main features of the ZQRZG intelligent linear reciprocating cutter are:
The digital control program operates with high accuracy. The stability is good. Work continuously. Automatic feed quantity, suitable for cutting granules and delicate pieces. The loss rate of cut slices is less than 3%, the incision is smooth and the shape is good, the whole machine is easy to clean, easy to operate and easy to maintain. No pollution of material. It meets the requirements of GMP.
The principle of ZQRZG intelligent linear reciprocating cutting machine is as follows:
The control module monitors and controls the frequency converter and the controller according to the program compiled by the microcomputer system. Accept the man-machine interface and the position sensing signal of the cutter. The parameters of the control module can be set up through the human-machine interface. The stepping speed and slice thickness of the cutter mechanism are controlled by the control module.
ZQRZG型智能化直線往復式切藥機技術參考：
型號 參考產量
（KG/H)
切片長度
（mm）
功率/電壓
（KW/V）
刀門寬度
（mm）
外型尺寸
（M)
重量
（KG)
ZQRZG-300BC 20-500 0.5-100 2.6/200 264 1.9×0.82×1.6 500 ZQRZG-500BC 50-700 0.5-100 4.4/220 464 1.9×1.02×1.6 600
切制篩選組合：
