QX型西洋參切片機主要用途：
QX型西洋參切片機又稱高效氣壓式切片機，是公司新自行設計的專利產品，是中藥飲片加工的關鍵設備之一，主要為切制西洋參，鹿茸、天麻等參類藥材。
QX型西洋參切片機主要原理：
藥材裝入裝料桶，放入置料器中，由氣缸勻速送到切片刀刀口進行切制；機架上設有二個置料器；由各自的氣缸送料。兩個氣缸分別設有下降、上升二個開關單獨控制工作；切片厚薄的調整由調節釘來控制、調節；
QX type Panax quinquefolium slicer is mainly used for:
QX type Panax quinquefolium slicer, also known as high efficiency pneumatic slicer, is a patent product newly designed by the company. It is one of the key equipment for processing Chinese herbal pieces, mainly for cutting Panax quinquefolium, pilose antler, Gastrodia elata and other ginseng medicinal materials.
The main principle of QX type Panax quinquefolium slicer is as follows
The medicinal materials are loaded into the loading barrel, put into the feeder, and sent to the edge of the slicing knife by the air cylinder at a constant speed for cutting; The machine frame is provided with two feeding devices; Feeding by respective cylinder. The two cylinders are respectively provided with two switches for descending and ascending to control the operation independently; The adjustment of slice thickness is controlled and adjusted by adjusting screw;
QX型西洋參切片機技術參考（Technical reference of QX type Panax quinquefolium slicer）：
型號 切片厚度
（mm）
進料口尺寸
（mm）
參考產量
（Kg/h）
功率/電壓
（KW/V)
電機型號 切刀頻率 外型尺寸
（M)
重量（KG)
QXP-60 0.2-2.5 ＜60 20-150 0.55/380 Y801-4 1200 0.35×0.52×1.16 80 西洋參切片機

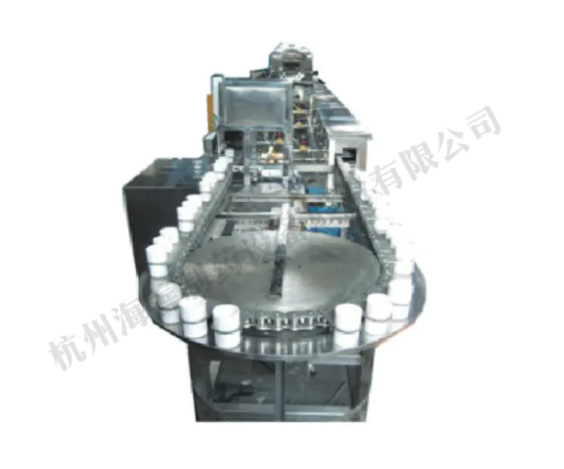

90型西洋參切片生產線
